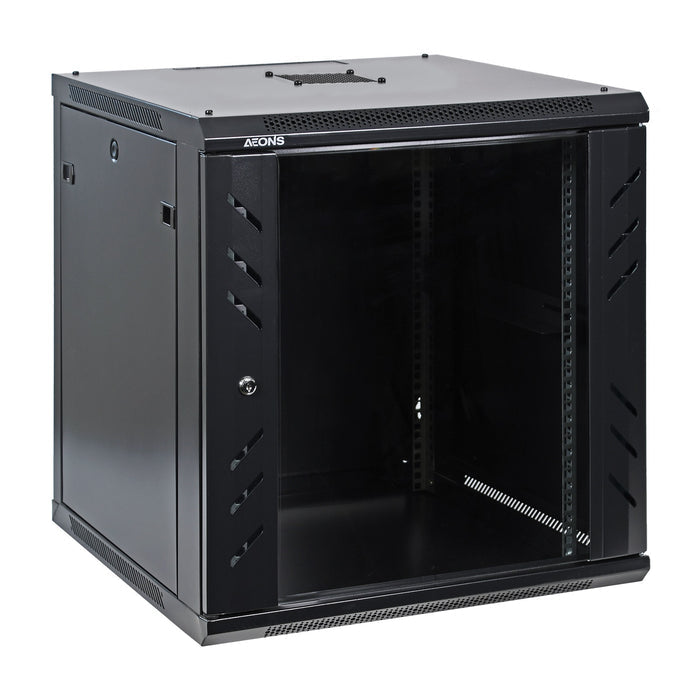

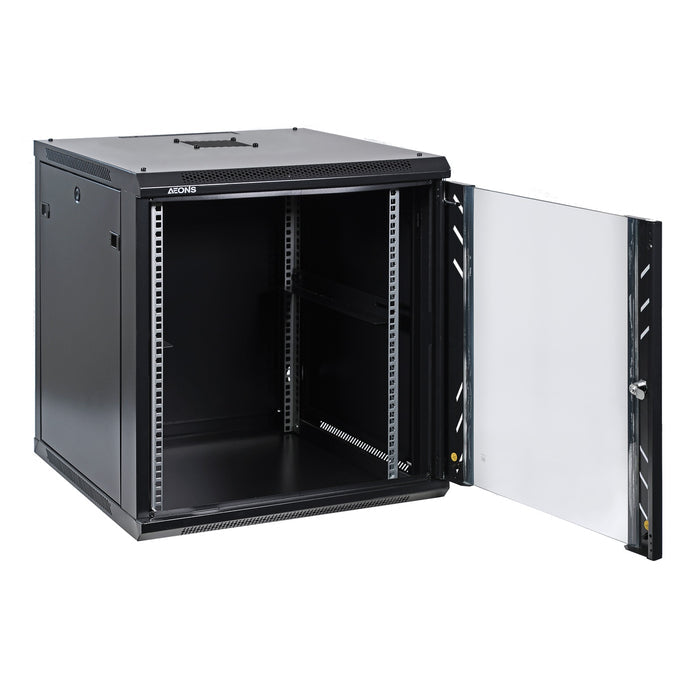

12U 19" Wall-Mount Rack Cabinet, Glass Door 21.4" Depth, Flat Box
12U 19" Wall-Mount Rack Cabinet, Glass Door 21.4" Depth, Flat Box
Data Sheet Assembly Guide
Pro-Series Wall Mount Cabinets organize and secure EIA-standard 19-inch rackmount equipment in network closets, offices, classrooms, and other locaons with limited floor space. Flat-packed for easy installaon and quick deployment. Removable and reversible front door and removable side panel design, each with quick-release mechanism, allow easy access to equipment during installation and maintenance. The vented frames and optional cooling fans provide excellent air ventilation.
Features:
Specs:
| Type: | Enclosure |
| Style: | Wall-Mount |
| Rack Height: | 12U |
| Rack Depth (in. / mm): | 23.2 / 590 |
| Maximum Device Depth (in. / mm): | 21.4 / 543 |
| Front Door Type: | Tempered Glass |
| Load capacity (lbs / kg): | 132 / 60 |
| Number of vertical mounting rails: | 4 |
| Number of L brackets: | 2 |
| Shelves: | No |
| Cable access: | Top, Bottom, Rear |
| Unit Dimensions (H x W x D / in.): | 25 x 23.5 x 23.5 |
Due to the dimensions of the box, Dimensional Weight Rates will apply for this item. What is Dimensional Weight?
** Free freight does NOT apply to this item. **
