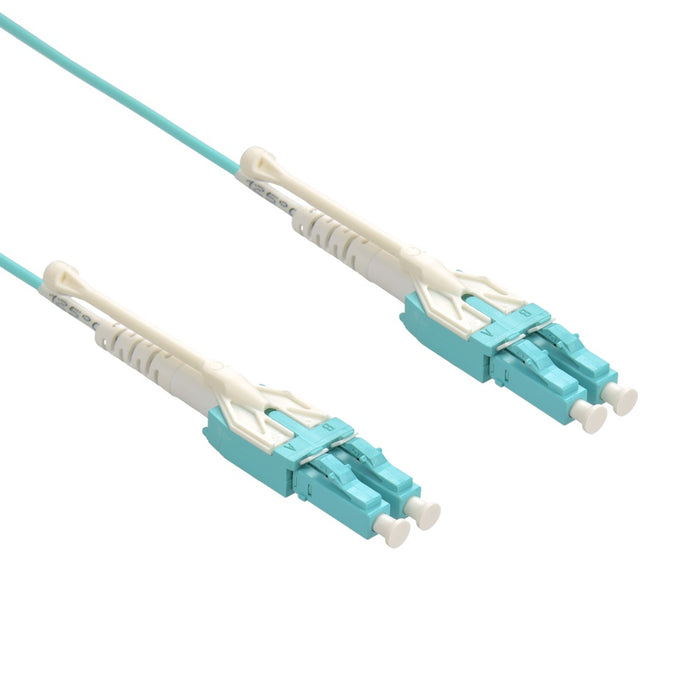

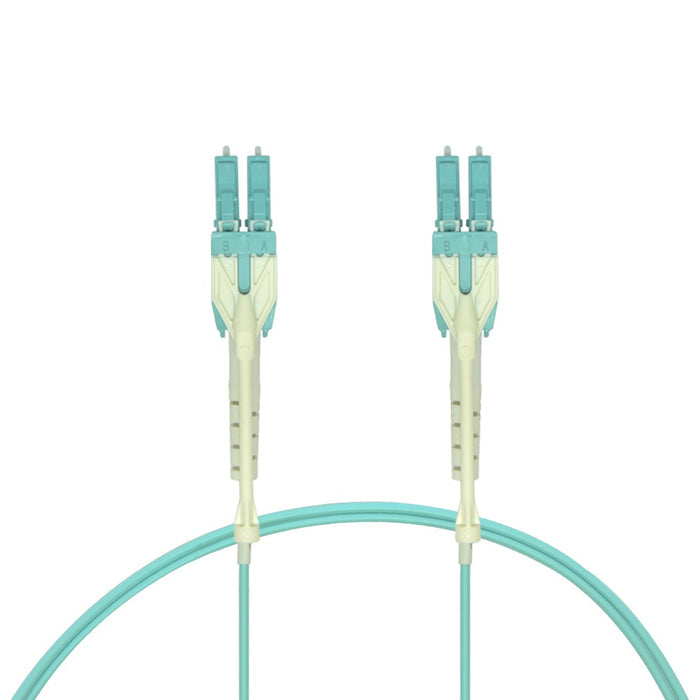

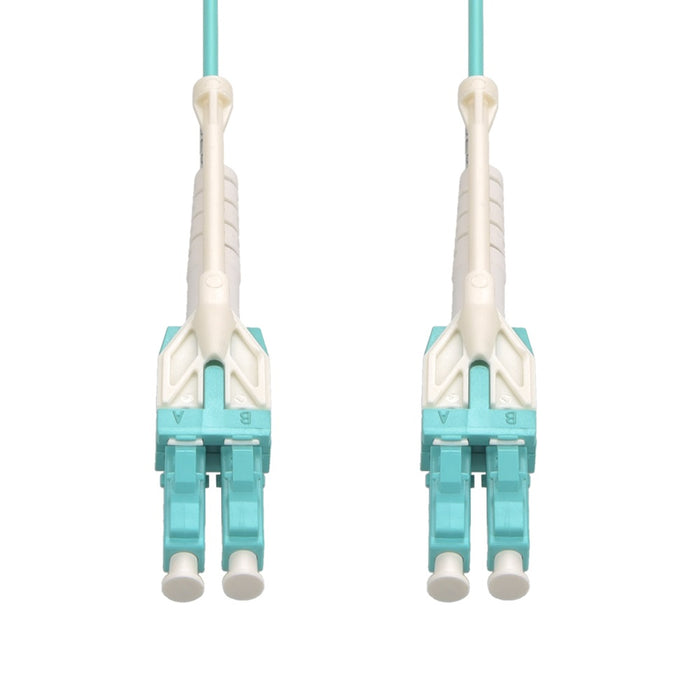

3m Uniboot LC/UPC-LC/UPC OM4 Multimode Duplex Aqua Fiber Optic Patch Cable with Pull Push
$7.92
Sale price
$7.92
Regular price
$12.99
The LC-LC uniboot design allows one cable to carry both fibers, reducing cable congestion when routing, and is suitable to be used in high-density fiber patching in data centers which need space saving and reduce cable management troubles. Pull-Push connector facilitates smooth and easy removal on high density patch panel.
| Connector Type | LC-LC with Pull Push Tab | ||
| Polishing | UPC | ||
| Return Loss | 55 dB | ||
| Insertion Loss | 0.30 dB (typical) | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Cabled Optical Fiber | Uniboot OM4 | ||
| Nominal Diameter Core | 50/125 ’…m | ||
| Jacket Material | OFNR | ||
| Temperature Range | -20’C +70’C |
